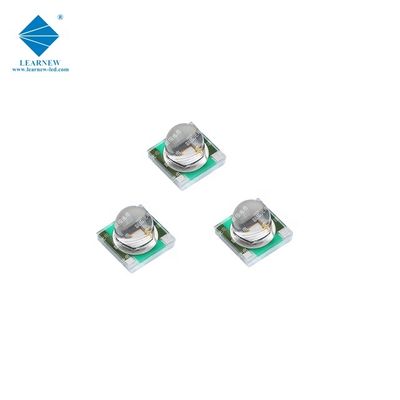

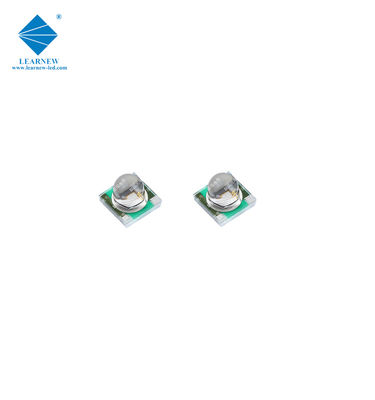

SMD3535 High Power LED Chip with 120° Viewing Angle 3.0-3.4V Input Voltage and 700mA/1A Current for Outdoor Lighting

SMD3535 High Power LED Chip with 120° Viewing Angle 3.0-3.4V Input Voltage and 700mA/1A Current for Outdoor Lighting
SMD3535 High Power LED Chip with 120° Viewing Angle 3.0-3.4V Input Voltage and 700mA/1A Current for Outdoor Lighting SMD3535 High Power LED Chip with 120° Viewing Angle 3.0-3.4V Input Voltage and 700mA/1A Current for Outdoor Lighting SMD3535 High Power LED Chip with 120° Viewing Angle 3.0-3.4V Input Voltage and 700mA/1A Current for Outdoor Lighting SMD3535 High Power LED Chip with 120° Viewing Angle 3.0-3.4V Input Voltage and 700mA/1A Current for Outdoor Lighting SMD3535 High Power LED Chip with 120° Viewing Angle 3.0-3.4V Input Voltage and 700mA/1A Current for Outdoor Lighting SMD3535 High Power LED Chip with 120° Viewing Angle 3.0-3.4V Input Voltage and 700mA/1A Current for Outdoor Lighting

Büyük resim :  SMD3535 High Power LED Chip with 120° Viewing Angle 3.0-3.4V Input Voltage and 700mA/1A Current for Outdoor Lighting

Ürün ayrıntıları:
Menşe yeri: Guangdong, Çin
Marka adı: Learnew
Ödeme & teslimat koşulları:
Min sipariş miktarı: 10

SMD3535 High Power LED Chip with 120° Viewing Angle 3.0-3.4V Input Voltage and 700mA/1A Current for Outdoor Lighting

Açıklama
Çip malzemesi: İç Aydınlık etkinliği: 240 lm/w
Renk sıcaklığı: 2700k-10000k Giriş voltajı: 3.0-3.4v
Aydınlık akı: 240-400LM Çalışma sıcaklığı: -20 - 100 ℃
Güç: 3W, 4W Ürün ağırlığı: 0.01kg
Saklama sıcaklığı: -20 - 80 ℃ Görüntüleme açısı: 120 °
Substrat: Seramik Boyut: 3.5*3.5mm
Akım: 700mA, 1000mA Çip boyutu: R3.0MM
Devre: 1S1P
Vurgulamak:

120° Viewing Angle SMD LED Chip

,

3.0-3.4V Input Voltage High Power LED

,

700mA/1A Current SMD3535 LED

SMD3535 OEM Red/Green/Yellow/Blue/White 1-4 Watts 700mA/1A 3.0V-3.4V LED Chip
High Power High LM LED Chip for Outdoor Lighting
We accept OEM and ODM service to customize any type of LED CHIP.
SMD3535 High Power LED Chip with 120° Viewing Angle 3.0-3.4V Input Voltage and 700mA/1A Current for Outdoor Lighting 0 SMD3535 High Power LED Chip with 120° Viewing Angle 3.0-3.4V Input Voltage and 700mA/1A Current for Outdoor Lighting 0
Parameter Specification
POWER 1W-4W
CCT WW=3000K PW=6000-7000K CW=8000-10000K YW=1800-2200K
Red (620-630nm) Far Red (650-660nm)
Ultra Red (680nm) Infrared Red (730-740nm)
Green (515-525nm) Blue (455-475nm)
Royal Blue (440-450nm) Yellow (585-595nm)
LUMINOUS EFF White color: 240-280LM; 350-400LM (Other colors contact us for details)
Current 700mA; 1000mA
Voltage 3.0-3.4V/2.0-2.4V
Design Advantage
  • Ceramic leadframe
  • High ESD pass
  • Standard A Class chips
  • Cost performance
  • Gold wire bond
  • Easy reflow soldering
Circuit 1S1P
SMD3535 High Power LED Chip with 120° Viewing Angle 3.0-3.4V Input Voltage and 700mA/1A Current for Outdoor Lighting 2 SMD3535 High Power LED Chip with 120° Viewing Angle 3.0-3.4V Input Voltage and 700mA/1A Current for Outdoor Lighting 2
Parameter Specification
Whole Size 3.5*3.5MM
LES R3.0MM
Substrate Ceramic
View Angle 120°
Chips SANAN 45mil; SANAN 55mil
CRI 70/80/90/95

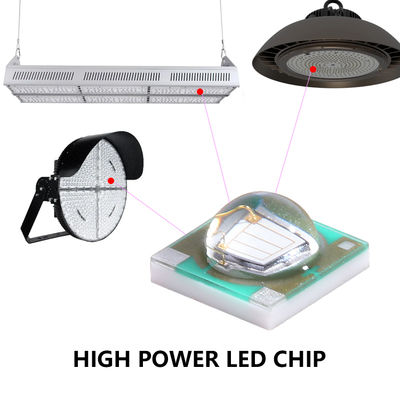

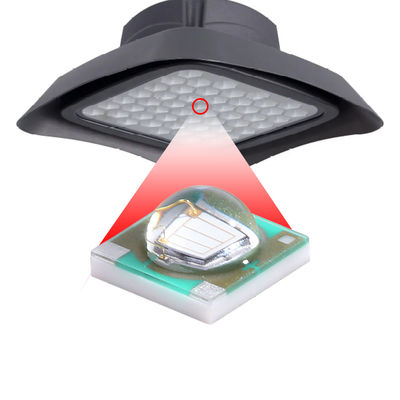

Applications
  • LED grow light
  • LED torch
  • LED stage light
  • LED streetlight
  • LED Landscape lighting
  • LED spotlight
SMD3535 High Power LED Chip with 120° Viewing Angle 3.0-3.4V Input Voltage and 700mA/1A Current for Outdoor Lighting 4 SMD3535 High Power LED Chip with 120° Viewing Angle 3.0-3.4V Input Voltage and 700mA/1A Current for Outdoor Lighting 4 SMD3535 High Power LED Chip with 120° Viewing Angle 3.0-3.4V Input Voltage and 700mA/1A Current for Outdoor Lighting 6 SMD3535 High Power LED Chip with 120° Viewing Angle 3.0-3.4V Input Voltage and 700mA/1A Current for Outdoor Lighting 6 SMD3535 High Power LED Chip with 120° Viewing Angle 3.0-3.4V Input Voltage and 700mA/1A Current for Outdoor Lighting 8 SMD3535 High Power LED Chip with 120° Viewing Angle 3.0-3.4V Input Voltage and 700mA/1A Current for Outdoor Lighting 8
Factory Introduction
SMD3535 High Power LED Chip with 120° Viewing Angle 3.0-3.4V Input Voltage and 700mA/1A Current for Outdoor Lighting 10 SMD3535 High Power LED Chip with 120° Viewing Angle 3.0-3.4V Input Voltage and 700mA/1A Current for Outdoor Lighting 10
Certifications
SMD3535 High Power LED Chip with 120° Viewing Angle 3.0-3.4V Input Voltage and 700mA/1A Current for Outdoor Lighting 12 SMD3535 High Power LED Chip with 120° Viewing Angle 3.0-3.4V Input Voltage and 700mA/1A Current for Outdoor Lighting 12
Company Profile
SMD3535 High Power LED Chip with 120° Viewing Angle 3.0-3.4V Input Voltage and 700mA/1A Current for Outdoor Lighting 14 SMD3535 High Power LED Chip with 120° Viewing Angle 3.0-3.4V Input Voltage and 700mA/1A Current for Outdoor Lighting 14 SMD3535 High Power LED Chip with 120° Viewing Angle 3.0-3.4V Input Voltage and 700mA/1A Current for Outdoor Lighting 16 SMD3535 High Power LED Chip with 120° Viewing Angle 3.0-3.4V Input Voltage and 700mA/1A Current for Outdoor Lighting 16
Product Packaging
SMD3535 High Power LED Chip with 120° Viewing Angle 3.0-3.4V Input Voltage and 700mA/1A Current for Outdoor Lighting 18 SMD3535 High Power LED Chip with 120° Viewing Angle 3.0-3.4V Input Voltage and 700mA/1A Current for Outdoor Lighting 18 SMD3535 High Power LED Chip with 120° Viewing Angle 3.0-3.4V Input Voltage and 700mA/1A Current for Outdoor Lighting 20 SMD3535 High Power LED Chip with 120° Viewing Angle 3.0-3.4V Input Voltage and 700mA/1A Current for Outdoor Lighting 20
Frequently Asked Questions
Q1: Do you supply OEM,ODM service?
A1: YES, absolutely it can be realized. We focus on OEM & ODM service more than 7 years.
Q2: All the pictures are real photo?
A2: Yes, the pictures of all products on this page are 100% real shoot by us.
Q3: How can I get a quotation from you?
A3: Please kindly leave us messages about your needs, including products parameters, application, your contact way and quantity. Our professional team will reply you in one hour here.
Q4: Is there any discount for bulk order?
A4: Yes, if you need bulk order or you want customized products, we can provide wholesale price. Be our fans on Alibaba or add us to "my favorite stores", you will always get our discount and coupon information at the first time.
Q5: Do you support drop shipping and how much is the shipping cost?
A5: Yes, we support drop shipping. You should leave the receiver's information when you place the order, then we will send the goods according the address you have left. The shipping cost are based on your order's volume and weight, you can check on Alibaba or ask our team.
Q6: How to place an order?
A6: You can check the shipping cost and discount information online, and place order directly on Alibaba. Or you can contact us for the order details, we will reply you in mins.
Q7: What payment terms are available?
A7: T/T, PayPal, Western Union and Secure Payment.
Q8: What about the lead time?
A8: It depends on the order quantity. In general, lead time is about 10-15 working days. For samples in standard, the delivery could be 3 days.
