Custom Germicidal UVC LED Chip with 222nm 254nm 265-285nm Wavelength and 99.99% Sterilization Efficiency

Custom Germicidal UVC LED Chip with 222nm 254nm 265-285nm Wavelength and 99.99% Sterilization Efficiency
Custom Germicidal UVC LED Chip with 222nm 254nm 265-285nm Wavelength and 99.99% Sterilization Efficiency Custom Germicidal UVC LED Chip with 222nm 254nm 265-285nm Wavelength and 99.99% Sterilization Efficiency Custom Germicidal UVC LED Chip with 222nm 254nm 265-285nm Wavelength and 99.99% Sterilization Efficiency Custom Germicidal UVC LED Chip with 222nm 254nm 265-285nm Wavelength and 99.99% Sterilization Efficiency Custom Germicidal UVC LED Chip with 222nm 254nm 265-285nm Wavelength and 99.99% Sterilization Efficiency Custom Germicidal UVC LED Chip with 222nm 254nm 265-285nm Wavelength and 99.99% Sterilization Efficiency

Büyük resim :  Custom Germicidal UVC LED Chip with 222nm 254nm 265-285nm Wavelength and 99.99% Sterilization Efficiency

Ürün ayrıntıları:
Menşe yeri: Guangdong, Çin
Marka adı: Learnew
Ödeme & teslimat koşulları:
Min sipariş miktarı: 5000
İletişim

Custom Germicidal UVC LED Chip with 222nm 254nm 265-285nm Wavelength and 99.99% Sterilization Efficiency

Açıklama
Çip malzemesi: İç Aydınlık etkinliği: 0.05 lm/w
Giriş voltajı: 5-7V; 3.0-3.6v Ömür: 10000 saat
Aydınlık yoğunluk: 450MW/cm2 Çalışma sıcaklığı: -20 - 65 ℃
Optik zayıflama: % 0.3 Güç: 0.5w; 0.6w; 1w; 3W
Güç dağıtımı: 0.4 Ürün ağırlığı: 0.02 kg
Radiant Yoğunluk: 10 MW/SR Saklama sıcaklığı: -20 - 70 ℃
Görüntüleme açısı: 60 ° Dalga boyu: 250-285nm
sterilizasyon verimliliği: % 99.99
Vurgulamak:

222nm 254nm 265-285nm Wavelength UVC LED Chip

,

3-Year Warranty UVC LED Chip

,

99.99% Sterilization Efficiency Germicidal LED

Custom Germicidal Equipment SMD LED Chip - 222nm, 254nm, 265-285nm UVC LED
Custom Germicidal UVC LED Chip with 222nm 254nm 265-285nm Wavelength and 99.99% Sterilization Efficiency 0
Product Specifications
Product Name: 3535 SMD LED chip 265-285nm UVC LED chip
Power Dissipation: 0.5w, 1w, 3w
Color Temperature: 250-285nm
IF: 350mA (max=600mA); 40mA (max=60mA); 100mA (max=150mA)
Input Voltage: 5-7V; 3.0-3.6V
Whole Size: 3.5*3.5mm
Lens: Quartz glass lens
View Angle: 60°
Substrate: ALN coppering
Design Advantages

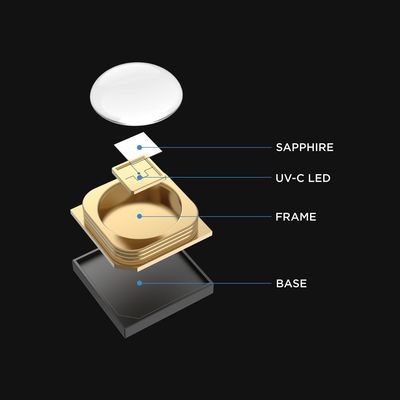

  • Quartz glass package
  • High radiant flux
  • Narrow wavelength
  • Inorganic & nitrogen package
  • Low thermal resistance
Applications
  • ICU Hospital
  • Air purifier
  • Water purifier
  • Washing machines
  • Sterilization equipment
Manufacturer
LEARNEW OPTO
Product Models
LN-SMD3535UVC-P3
Custom Germicidal UVC LED Chip with 222nm 254nm 265-285nm Wavelength and 99.99% Sterilization Efficiency 1 Custom Germicidal UVC LED Chip with 222nm 254nm 265-285nm Wavelength and 99.99% Sterilization Efficiency 2 Custom Germicidal UVC LED Chip with 222nm 254nm 265-285nm Wavelength and 99.99% Sterilization Efficiency 3 Custom Germicidal UVC LED Chip with 222nm 254nm 265-285nm Wavelength and 99.99% Sterilization Efficiency 4
LN-SMD3535UVC-P1
Custom Germicidal UVC LED Chip with 222nm 254nm 265-285nm Wavelength and 99.99% Sterilization Efficiency 5 Custom Germicidal UVC LED Chip with 222nm 254nm 265-285nm Wavelength and 99.99% Sterilization Efficiency 6 Custom Germicidal UVC LED Chip with 222nm 254nm 265-285nm Wavelength and 99.99% Sterilization Efficiency 7 Custom Germicidal UVC LED Chip with 222nm 254nm 265-285nm Wavelength and 99.99% Sterilization Efficiency 8 Custom Germicidal UVC LED Chip with 222nm 254nm 265-285nm Wavelength and 99.99% Sterilization Efficiency 9
LN-SMD3535UVAC-P0.5
Custom Germicidal UVC LED Chip with 222nm 254nm 265-285nm Wavelength and 99.99% Sterilization Efficiency 10 Custom Germicidal UVC LED Chip with 222nm 254nm 265-285nm Wavelength and 99.99% Sterilization Efficiency 11 Custom Germicidal UVC LED Chip with 222nm 254nm 265-285nm Wavelength and 99.99% Sterilization Efficiency 12
Usage Considerations for SMD LED
  1. Verify quantity and model before use to prevent incorrect shipments
  2. Avoid external force impact on SMD silicone to prevent broken wires or LEDs
  3. Perform incoming QC checks for color, brightness, and voltage specifications
  4. Dehumidify in an industrial oven at 70-80°C for 12+ hours before use
  5. Prevent contact with sulfur, phosphorus, halogens, alcohol, acetone, or similar compounds
  6. Follow recommended reflow soldering temperature curves (40-60 cm/min speed)
UVC LED Protection Measures
  • Store in dry boxes with desiccant (5-30°C, humidity <50%)
  • Use anti-static precautions (wrist bands, gloves, proper tools)
  • Avoid direct contact with lens surface
Click here for more information
Company Information
Custom Germicidal UVC LED Chip with 222nm 254nm 265-285nm Wavelength and 99.99% Sterilization Efficiency 13 Custom Germicidal UVC LED Chip with 222nm 254nm 265-285nm Wavelength and 99.99% Sterilization Efficiency 14 Custom Germicidal UVC LED Chip with 222nm 254nm 265-285nm Wavelength and 99.99% Sterilization Efficiency 15
Packaging & Shipping
Custom Germicidal UVC LED Chip with 222nm 254nm 265-285nm Wavelength and 99.99% Sterilization Efficiency 16 Custom Germicidal UVC LED Chip with 222nm 254nm 265-285nm Wavelength and 99.99% Sterilization Efficiency 17
Frequently Asked Questions
Q1: Do you supply OEM, ODM service?
A1: Yes, we provide complete OEM and ODM services.
Q2: Are all pictures real photos?
A2: Yes, all product images are 100% authentic.
Q3: How can I get a quotation?
A3: Contact us with your product requirements and quantity for a prompt response.
Q4: Is there bulk order discount?
A4: Yes, we offer wholesale pricing for bulk and customized orders.
Q5: Do you support drop shipping?
A5: Yes, we handle drop shipping based on your provided shipping address.
Q6: How to place an order?
A6: Contact us via email or online messenger for order processing.
Q7: What payment methods do you accept?
A7: We accept T/T, PayPal, Western Union, and Secure Payment.
Q8: What is the lead time?
A8: Typically 3-75 working days depending on order quantity (same day for samples).
